Current consumption : 15mA MAX
warranty : 1 Year
Price : $57.30-62.30 / piece
weight (kg) : 0.5
Output current : 12mA MAX
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Supply Voltage : DC5~24V
MOQ : 1 piece
Brand Name : Makinopc
Magnetic detection direction : Forward
Shell material : Glass fiber reinforced resin: black
Protection class : IP67
Indicator light : Red color
Detection Poles : ZPS024-S: S pole; ZPS024-N: N pole
Magnetic sensitivity : 2.5~3.5mT
Place of Origin : Guangdong, China
Response time : 5μ sec
Supply Voltage | DC5~24V |
Detection Poles | ZPS024-S: S pole |
ZPS024-N: N pole | |
Magnetic sensitivity | 2.5~3.5mT |
Magnetic detection direction | Forward |
Output mode | NPN normally open (ON when close) |
Output current | 12mA MAX |
Current consumption | 15mA MAX |
Response time | 5μ sec |
Withstanding Voltage | AC1000V |
Insulation resistance | (1 minute, between the whole charging part and the case) |
DC250V | |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m |
S pole: Gray | |
N-pole: Black | |
Shell material | Glass fiber reinforced resin: black |
Installation | M9 nut Tightening torque 0.5N-m |
It is recommended to prevent loosening by using an adhesive or the like. | |
Mounting aperture processing size | φ9 +0.5 / 0 |
Indicator light | Red color |
Protection Class | IP67 |







|
|

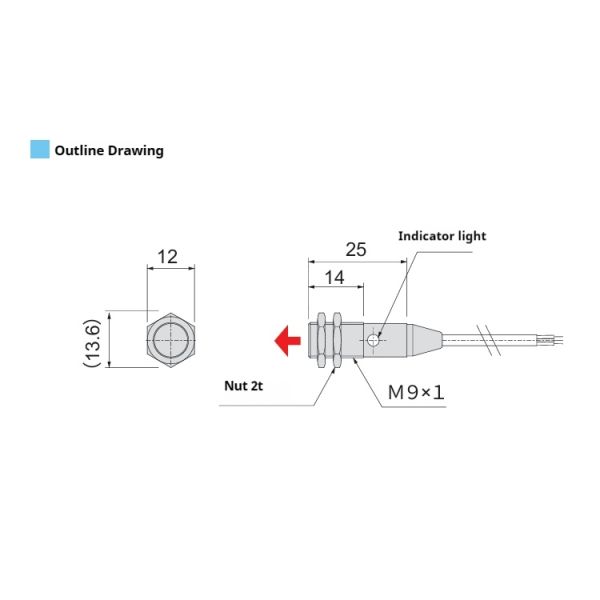

ZPS024 IP67 Rated DC5-24V Magnetic Proximity Sensor Digital Transducer Switch with S/N Pole Wires Images |
