Contact Diameter : 14-20mm
Repeatability : 0.001mm (condition: operating speed 50-200mm/min)
Contact part material : Super hard alloy
Price : $1,169-1,189 / piece
weight (kg) : 2
video outgoing-inspection : Provided
Brand Name : makinopc
Output Mode : normally open
Contact life : >10 million times
Contact strength : XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction)
MOQ : 1 piece
Machine Type : Milling Machine, turning machine, lathe machine
Transmission Mode : Hardwire connection transmission
Measuring direction : ±X,±Y, +Z
Surface treatment : Grinding 4S mirror
machinery test report : Not Available
Stroke : XY plane 12.5°, 2-way 6.35mm
Place of Origin : Guangdong, China
warranty : 1 Year
Product Name | Five Direction Tool Setting Instrument |
Product Model | MS27R |
Output Mode | normally open |
Transmission Mode | Hardwire connection transmission |
Contact Diameter | 14-20mm |
Measuring direction | ±X,±Y, +Z |
Contact part material | Super hard alloy |
Surface treatment | Grinding 4S mirror |
Repeatability | 0.001mm (condition: operating speed 50-200mm/min) |
Contact life | >10 million times |
Contact strength | XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction) |
Protection structure | IP68 |
Stroke | XY plane 12.5°, 2-way 6.35mm |
Pre-travel | None |
Contact rating | DC24V~20mA(MAX) Recommended value 10mA Resistance load |
Power supply | 12-30VDC |
Cable specification | Standard 5m (6.0mm diameter, 4 core shielded cable) |
Protection Tube | 2m |
Precautions | Be sure to use it within the rated power range. (12-30VDC) Mounting base requires grounding protection or shielding. |






|
|

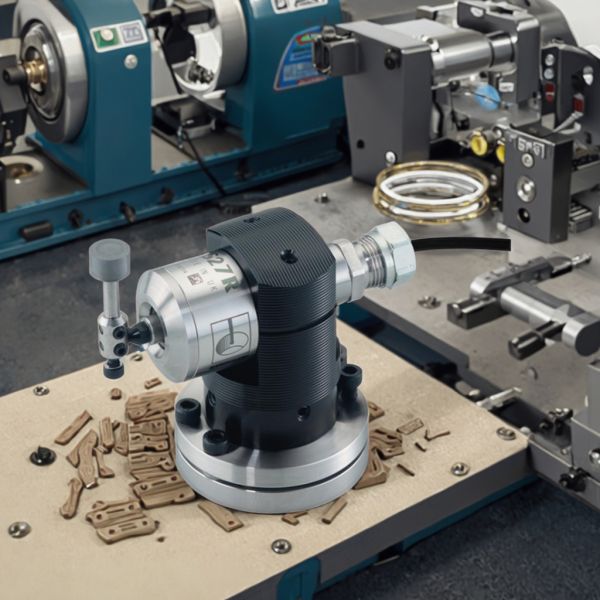

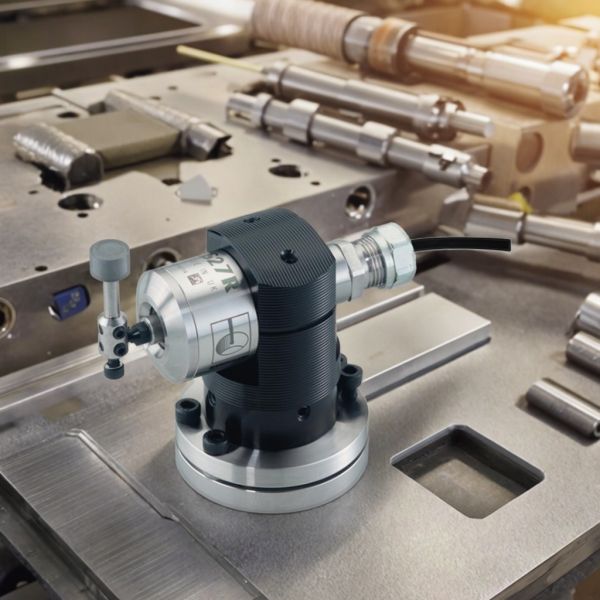

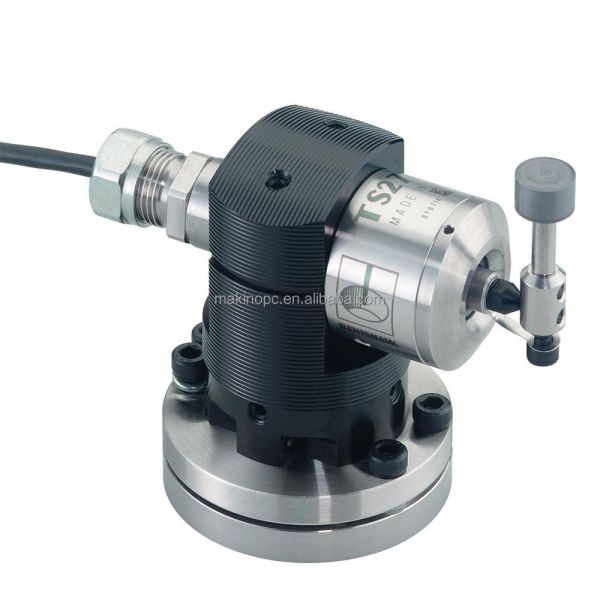

Renishaw 5-direction Milling Tool Setter Broken Tool Detector Super Hard Alloy Contacts 0.001mm Repeatability for CNC Centers Images |
