warranty : 1 Year
Marketing Type : Ordinary Product
Brand Name : Makinopc
Core Components : Pulse,Handwheel encoder
style : Solid
weight (kg) : 1.5
Condition : New
video outgoing-inspection : Provided
machinery test report : Not Available
Place of Origin : Guangdong, China
material : Plastic
MOQ : 1 piece
Applicable Industries : Manufacturing Plant
Price : $57.90-61.30 / piece
Showroom Location : None
Product Name | UFO Series Hand Pulse Generator | ||||||||
Product Model | UFO-M2-01-2D-B: Signal (A BA -B), Voltage (5v), Pulse (100PPR) | ||||||||
UFO-0025-2H: Signal (AB), Voltage (12v), Pulse (25PPR) | |||||||||

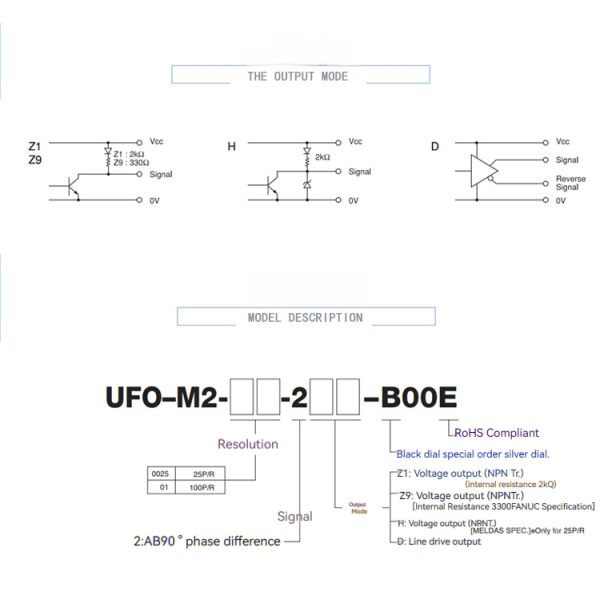

Electrical Parameters | Type | 21 | Z9 | H | D | ||||
Supply Voltage | DC+4.5V~+13.2V | DC+5V± 10% | DC+12V±10% | DC+5V±5% | |||||
Current consumption | 50 mh Max | 70 mh Max | 50 mh ax | 100 mA Max | |||||
Resolution | 100 mA ax·25P/R | 25P/R | 100P/R·25P/R | ||||||
Output Voltage (H) | Vec-1V Min | +5V+10% | 2.5 V MIN | ||||||
Output Voltage (L) | 0.5 y Max | ||||||||
Maximum Frequency | 5 kHz | ||||||||
Rise and fall time | 1 4s Max | 1.5 μs Max | 200 ns ax | ||||||
Maximum reverse current | 20 mh ax | ||||||||
Mechanical Specifications | Shaft | 9.8N | |||||||
Load | 19.6N | ||||||||
Maximum Rotation Speed | 600min-1(Unwinding) | ||||||||
200min-1(continuous) | |||||||||
Rotational life | >1,000,000 times (200min-1) | ||||||||
Net weight | 200g | ||||||||
Environmental Characteristics | Operating temperature | -10℃~+60℃ | |||||||
Storage temperature | -30℃~+70℃ | ||||||||
Humidity | RH 85%"ax non-condensing | ||||||||
Amplitude | 10~55Hz/1.5mm X,Y,2 Each 2h | ||||||||
Shock | 490m/s,1lms X,Y,Z Each 3 times | ||||||||
Protection class | IP64 (Panel Mount) | ||||||||
System Options | UFO-M2-01-2D-B | Suitable for Fanuc, Weihong, Guangdian, Beijing Jingdiao, , Baoyuan, Xindai, Fagor Guangzhou CNC, Huazhong, Kaindi, Zongwei Xing and other systems. | |||||||
UFO-0025-2H | Suitable for Mitsubishi and other systems | ||||||||
Indication | For systems not listed, contact customer service for handwheel voltage and number of pulses. | ||||||||









|
|
60mm Diameter Original Inner Micronics UFO-0025-2H Hand Pulse Generator Electronic Hand Wheel UFO-M2-01-2D-B Images |
